X Probe Logo X Probe Tools & Accessories

P/N
Cart

Pin Gauge

Pin Gauge

Used for simple Go/No-Go inspection of socket mounting holes in AT7000, G10/FR4 or similar materials. (Click here for a complete list of part numbers and to order)



Termination Installation Tool

Termination Installation Tool

The -FL tool is used to install a termination pin set FLUSH or 0.000.

A replacement -TIP can be ordered when your used tool is damaged or worn.

Termination Installation Tool

The SET X.XXX (must specify set height) tool is used to install termination pins to a specific set height (See applicable series for range). For negative set heights, use our -E SET X.XXX version tool.

A replacement -TIP can be ordered when your used tool is damaged or worn.

(Click here for a complete list of part numbers and to order)



Termination Extraction Tool

Socket Extraction Tool Socket Extraction Tool

Used to remove termination pins without damaging the mounting hole.

A replacement -TIP can be ordered when your used tool is damaged or worn.

To properly extract a termination pin from your fixture, we recommend that it first be mounted Flush. For your convenience, we offer an -KIT which includes of one extraction tool and one -FL insertion tool.

An E  extended tool is designed to remove and install termination pins from the back plate with the probe and optional spacer plate in place.

A replacement -TIP can be ordered when your used tool is damaged or worn.
(Click here for a complete list of part numbers and to order)



Probe Installation Tool

050-R25 Series Probe Installation ToolProbe Installation Tool

For ease probe installation while preventing probe tip blunting



Probe Extraction Tool

Probe Extraction Tool

Allows easy removal of probes with headed tip styles.

A replacement -TIP can be ordered when your used tool is damaged or worn.



Damaged Probe Tube Extraction Tool

Damaged Probe Tube Extraction Tool

Used to remove damaged probe tubes.

A replacement -TIP can be ordered when your used tool is damaged or worn.

Indicator Probe

Indicator Probe

Used to measure probe stroke in a test fixture (plunger remains at deflected position).
(Click here for a complete list of part numbers and to order)



Wire Grip Installation Tool

Wire Grip Installation Tool

Used to install Wire Grips for the wire assembly into the back of the socket.

A replacement -TIP can be ordered when your used tool is damaged or worn.



Wire Jack Installation Tool

Wire Jack Installation Tool

Used to install Wire Jacks into the back of the socket.

A replacement -TIP can be ordered when your used tool is damaged or worn.

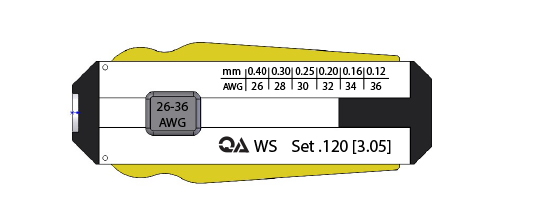

Wire Strippers

Wire Strippers

WS tool has a selectable built-in adjustment dial to accommodate various wire sizes from 20-30 AWG. They are preset to strip a length of 0.120 [3.05] for use with wire plugs, jacks or grips.



Wire Wrap Tools

Wire Wrap Tool

Our WW26, WW28 and WW30 high quality hand wire wrap tools that are available for 26, 28, or 30 AWG wire sizes. These tools form modified wraps on 0.025 [0.635] square or round posts.

Our WU unwrap tools are double ended to facilitate easy removal of both clockwise and counterclockwise wire wraps.

Heat Shrinkable Insulating Tubing

Heat Shrinkable Insulating Tubing

For insulating wire wrap and wire jack sockets and termination pins on 0.050 [1.27] centers and smaller.

Available in blue 24 [610] lengths with a 0.046 [1.17] ID, this tubing is stiffer than other types, making installation easier. Customer to cut tubing in lengths to suit application.

Probe Maintenance Brush

Probe Maintenance Brush

TBR-1 is a made from an ESD anti-static natural bristle to easily clean away fluxes and debris from your test probe tips as part of your regularly scheduled maintenance program.

Installation Hammer

Socket and Termination Installation Hammer

The hammer is to be used in conjunction with our installation and extraction tools.

Tool Organizer

Tool Roll Organizer

A sturdy, compact canvas tool roll to organize a variety of maintenance tools to be accessible at your fintertips. (tools are sold separately)

Fixture Training Kit

Fixture Training Kit

Efficiently installing and removing probes, sockets or termination pins for regularly scheduled maintenance or in emergency situations is a skill that takes time and experience. Attempting to learn while using existing production fixtures could result in catastrophic errors and costs if the process is carried out incorrectly.

QA’s new Fixture Training Kit will help you tackle this challenge. Used in conjunction with our instructional videos, the fixture enables you to effectively train new and existing technicians, without disrupting the production schedule



Termination Installation Tools Part Numbers
Series FLUSH Tool
Replacement TIP
PRESET Tool
Replacement TIP
Set Height (min to max)
PRESET (negative) Tool
Replacement TIP
Set Height (min to max)
X31-16
X31-25
X31-40
-0.150 to 0.050 [-3.81 to 1.27] -0.435 to -0.150 [-11.05 to -3.81]
X39-16
X39-25
X39-40
-0.150 to 0.100 [-3.81 to 2.54] -0.150 to 0.100 [-3.81 to 2.54]
X50-16
X50-25
X50-40
-0.150 to 0.150 [-3.81 to 3.81] -0.435 to -0.150 [-11.05 to -3.81]
X75-16
X75-25
X75-40
-0.150 to 0.150 [-3.81 to 3.81] -0.435 to -0.150 [-11.05 to -3.81]
(Back to Top)


Termination Extraction Tools Part Numbers
Series Extraction Tool
Replacement TIP
KIT Extended Tool
Replacement TIP
X31-16
X31-25
X39-40
X39-16
X39-25
X39-40
X50-16
X50-25
X50-40
X75-16
X75-25
X75-40
(Back to Top)

Pin Gauge Tool Part Numbers
Series BACK Plate
Recommended Hole Diameter
Suggested Drill Size
PROBE Plate
Recommended Hole Diameter
Suggested Drill Size
X31-16
X31-25
X31-40
0.0217/0.0225 [0.551/0.572]
#74 or .57mm
0.025/0.026 [0.635/0.66]
#71 or .65mm
X39-16
X39-25
X39-40
0.0315/0.0325 [0.80/0.83]
#66 or .82mm
X50-16
X50-25
X50-40
0.038/0.039 [.097/0.99]
#61 or 1.00mm
0.0415/0.0430 [1.054/1.092]
#57
X75-16
X75-25
X75-40
0.0515/0.0525 [1.31/1.33]
#55 or 1.35mm
0.0545/0.056 [1.38/1.42]
#54 or 1.40mm
(Back to Top)


Indicator Probes
Series
X39-25
X50-16
X50-25
X50-40
X75-16
X75-25
X75-40


All specifications subject to change without notice. All dimensions are in [mm]. All spring forces are oz [gm/newtons].
