Designed for loaded board testing.
QA Technology offers many combinations of terminations. You can build your termination by making the appropriate selections below for your specific application.
If you have questions at any time during the process, contact us at (603) 926-0348.
|Plates||Hole Size||Drill Size|
|Probe Plate||.0415/.0430 [1.054/1.092]||#57 or 1.1mm|
|Back Plate||.0380/.0390 [0.965/0.990]||#61 or 1.0mm|

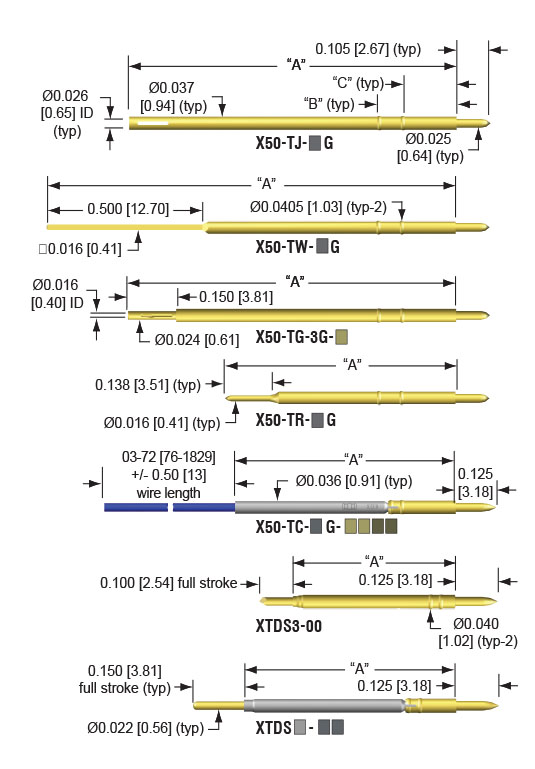

|Letter||Description / Material|
|C||Crimped. Termination material: Heat treated BeCu, gold plated. Tube material ID: precious metal clad.|
|J||Wire Jack. Heat treated BeCu, gold plated over nickel, accepts wire jack.|
|R||Round post. Heat treated BeCu, gold plated over nickel.|
|W||Wire Wrap. Heat treated BeCu, gold plated over nickel.|
|DS3||Double-ended for wireless testing. Click Here for ordering details.|
|0||Only available in TC or TR termination|
|2||Only available in TJ or TW termination|
All specifications subject to change without notice. All dimensions are in [mm]. All spring forces are oz [gm].
