Designed for dual level, loaded board testing.
QA offers several different termination wiring connection types. Our “G” type termination is used with wire grip sleeves or “J” type termination with our wire jacks.
An air actuated Crimper is available to permanently attach customer supplied wire to Wire Jacks. It can be ordered on the Tools page.
If you have questions at any time during the process, contact us at (603) 926-0348.

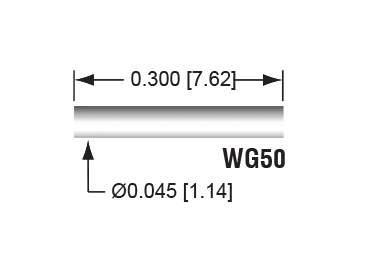

|WG50||WG50 Wire Grip Sleeve accepts 30AWG Kynar insulated wire, stripped at .120 [3.05] (not included). Material is white nylon.|
|WJ2830||WJ2830 Wire Jack only (Customer to crimp wire) Brass/gold plated with nylon insulator.|
|WJ28C8||Wire Jack with 28 AWG Kynar insulated solid wire pre-attached, specify color and length|
|WJ30C3||Wire Jack with 30 AWG Kynar insulated solid wire pre-attached, specify color and length|
|S||Stripped length. Specify in inches (Range: .001/.669 [0.00/16.99]|
All specifications subject to change without notice. All dimensions are in [mm]. All spring forces are oz [gm].
